Capital Single Bay Swing, Nest Seat

S-9900

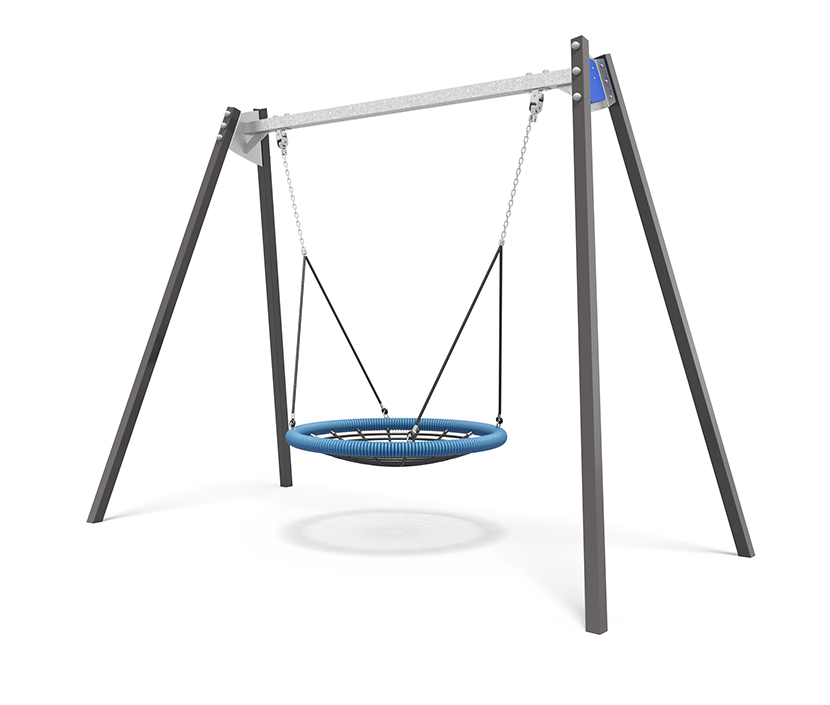

The most popular A-Frame swing design with the unique Moduplay fully welded top beam for unbeatable strength and durability. Your choice of seats available. Nest swing shown. The dimensions shown in the table are maximums.

*Soft-fall areas for swings vary with the chosen soft-fall type.

Download Spec Sheet

Specifications 360 View Downloads

Specifications

Activities: 5
Fall Height: 1500mm
Number Of Users: 5
Soft Fall Area: 27.6m²
Space Req. Incl Soft-fall: 8m x 4.4m

Social Play
Swing

Special Needs

Side and Top View

Length: 3439mm
Width: 1680mm
Height: 2600mm

360° VIEW

Download Spec Sheet
High-resolution image
2D File (DWG)Please Login or Register to download this file.
